Aluminum Railing USA — Modern Low-Maintenance Systems

Stainless Design supplies aluminum railing channel systems for USA frameless glass installations — top-mount and side-mount profiles, complete with rubbers and wedges. Cost-effective, corrosion-resistant and low-maintenance. Ships to all 50 states.

Aluminum Railing Channel Systems — USA Frameless Glass Installation

Aluminum railing channel is the foundation of any USA frameless glass system where a continuous base channel is preferred over point-fixed spigots. The channel bolts to the slab, deck framing or fascia, and glass panels slot in and are secured with rubber seals and aluminum or stainless steel wedges — no drilling through the glass, no individual spigot anchor per panel. This makes aluminum base channel particularly popular with USA deck contractors who need a watertight, fast-to-install system without the precision core-drilling required for spigot installations. Stainless Design supplies aluminum channel profiles in both top-mount (installed flat on the surface) and side-mount (installed on the fascia face of the deck frame) configurations, covering every USA deck framing type.

The correct aluminum railing channel size depends on the glass thickness specified. Stainless Design's channel range covers 10mm residential glass and 16mm commercial-grade glass. The 10mm channel system with SGCC-certified tempered glass (ANSI Z97.1 / CPSC 16 CFR Part 1201) meets IRC Section R312 residential guard requirements. The 16mm channel with toughened-laminated SGCC glass meets IBC Section 1015 commercial requirements and is the correct specification for all USA commercial projects, elevated balconies and pool surrounds subject to IBC Section 2407 safety glazing requirements. Each channel kit ships complete with factory-matched rubber seals, wedge strips and stainless steel fixing screws — one supplier for the complete system, no sourcing of consumables separately.

Aluminum railing channel is particularly well-suited to USA high-rainfall and coastal environments because the sealed channel base prevents water infiltration between the glass panel and the structure below. In USA hurricane zones (Florida, Gulf Coast, Hawaii, Puerto Rico), a correctly installed channel system with laminated glass also meets Miami-Dade County NOA wind-load performance requirements when specified with the appropriate glass thickness and fixing pattern. For northern USA states where freeze-thaw cycles are severe (Michigan, Minnesota, Wisconsin, the Mountain West), the sealed channel base prevents ice formation at the glass-to-structure interface — eliminating the ice-jacking force that can fracture glass panels in open-base spigot installations over multiple freeze cycles.

Why Buy Aluminum Railing from Stainless Design?

  • ✓ Top-mount and side-mount channel for every USA deck framing type
  • ✓ 10mm residential and 16mm commercial glass — IRC R312 and IBC 1015
  • ✓ SGCC-certified glass — ANSI Z97.1 and CPSC 16 CFR Part 1201
  • ✓ Complete kits — channel, rubber seals, wedges and fixings in one order
  • ✓ Suitable for USA hurricane zones and severe freeze-thaw climates
  • ✓ Factory-direct — ships to all 50 US states, same-day quotes

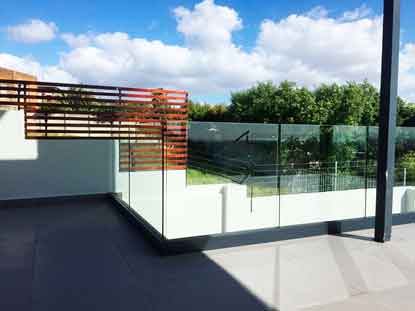

Aluminum railing USA channel system installation detail

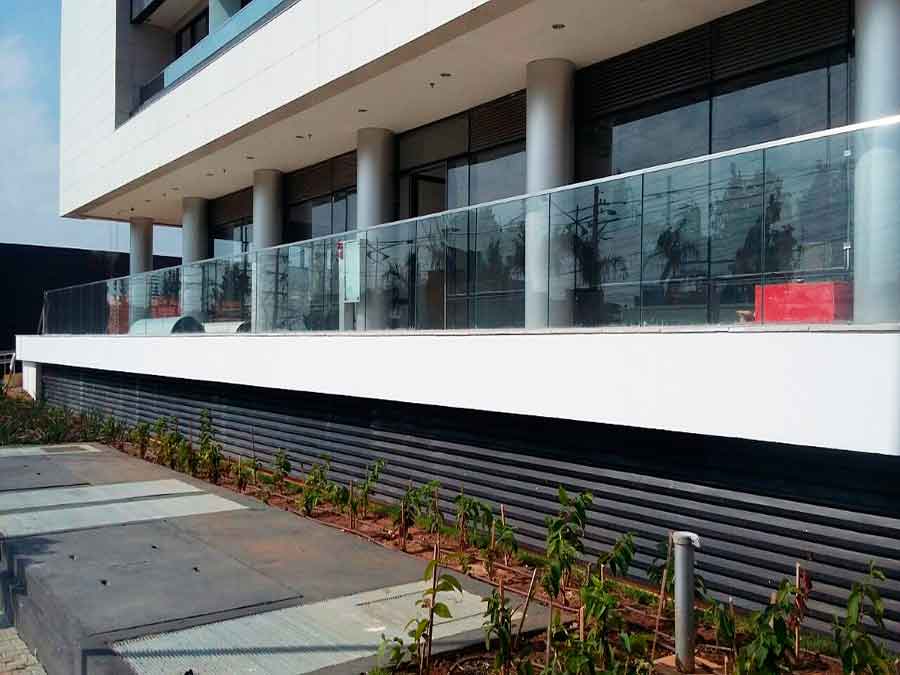

Aluminum balustrade USA frameless glass completed project
Download Our Aluminum Railing PDF Catalogue

Frequently Asked Questions — Aluminum Railing USA

Aluminum base channel railing uses a continuous extruded aluminium U-channel as the glass support system instead of individual post spigots. The channel is either top-mount (fastened to the flat deck surface) or side-mount (fastened to the side fascia of the deck or slab). Glass panels slot into the channel and are held by EPDM wedge packers and structural silicone — no point loads on individual post anchors. This system is the preferred solution for USA timber decks where joist spacing makes individual post anchoring impractical, and for retrofits where the existing structure cannot accommodate core-drilled spigot sleeves. The channel distributes the glass load along the full bottom edge, which is favorable under IBC Table 1607.8 load requirements. Stainless Design supplies top-mount and side-mount channels in powder-coated aluminium in a range of USA-standard finishes.

Aluminum base channel systems are designed to accept 10mm, 12mm and 16mm glass panels depending on the application. For USA residential decks (IRC R312), 10mm fully tempered SGCC-certified glass is standard. For USA commercial applications (IBC 1015) and elevated installations over 10 feet above grade, 12mm or 16mm tempered-and-laminated glass is required. The channel width is matched to the glass thickness plus the EPDM packing strips — the system is not field-adaptable to arbitrary glass widths. Stainless Design specifies the correct channel profile and glass thickness based on the application and USA jurisdiction. California CBC projects always require laminated glass regardless of height, which Stainless Design's California channel packages include by default.

Standard aluminum alloy (6000-series) is suitable for most USA outdoor environments and pools when anodized or powder-coated. However, for USA coastal environments within roughly a mile of the ocean — Florida, California, Gulf Coast, Pacific Northwest — marine-grade paint systems and anodized finishes are required to resist salt-air chloride attack on the aluminum substrate. Bare or inadequately coated aluminum will oxidize and pit in coastal air within 18–24 months. For pool surrounds using pool-grade chemicals including chlorine, cyanuric acid and pH adjustment chemicals, a polyester powder coat or marine-grade anodize at 25-micron minimum provides the necessary barrier. Stainless Design's aluminium channel systems are powder-coated in-factory and specified for coastal or pool exposure when ordered.

Top-mount aluminum channel is fastened flat on the deck surface — the channel runs along the top of the deck, right at the edge, and the glass rises vertically from it. The anchor bolts go down through the channel into the deck structure or concrete slab. This is the most common USA deck installation and the cleaner visual option since no hardware is visible from the side. Side-mount channel is attached to the vertical fascia of the deck edge — the rim board, rim joist or the side face of a concrete slab. The glass then begins at approximately deck height and rises above. Side-mount is chosen when the deck structure is not deep enough for top-mount anchor bolts, or when the architect wants the glass to appear to continue the fascia line. Both systems accept the same glass thickness range and meet IBC 1015 and IRC R312 height requirements when specified correctly.

Yes, when correctly specified and installed. The system must meet IBC Section 1015 (42-inch minimum height for commercial) or IRC Section R312 (36-inch residential), IBC Table 1607.8 load requirements (200 lb/LF residential, 500 lb/LF commercial), IBC Section 2407 safety glazing requirements (SGCC-certified glass), and IBC Section 1015.4 / IRC Section R312.1.3 sphere-rule infill requirements (no opening greater than 4 inches). Stainless Design provides an engineering data pack for each system including anchor bolt schedules, glass specifications and channel load capacity tables — all formatted for submission to USA building departments. Many USA jurisdictions accept manufacturer-provided engineering data in lieu of project-specific stamped drawings for standard residential applications.
