Stainless Steel Handrail USA — Modular 316L Components

Stainless Design supplies modular stainless steel handrail systems for USA staircases, ramps, balconies and accessible facilities. 1½" and 2" round tube in 316L marine-grade stainless — wall-mount, post-mount and glass-mount configurations. Ships to all 50 states.

USA Handrail Code — IBC 1014 & IRC R311 Diameter & Height

USA stair stainless steel handrail requirements come from IBC Section 1014 for commercial and multifamily buildings and IRC Section R311.7.8 for residential one- and two-family dwellings. Both codes require a continuous graspable handrail on at least one side of every stairway with 4 or more risers, positioned 34" to 38" above the stair nosing measured vertically. For ramps, handrail is required on both sides where the rise exceeds 6 inches. ADA Section 505 (2010 ADA Standards for Accessible Design) requires handrail extensions of 12" beyond the top riser and one tread width plus 12" beyond the bottom riser — critical for all USA public buildings, schools, hospitals and any facility receiving federal funding or subject to ADA compliance.

The graspable profile of a USA stainless steel handrail is defined by IBC Section 1014.3.2: circular cross-sections must have an outside diameter of 1.25" to 2". Stainless Design supplies 42mm (1.65") and 50mm (2") 316L round tube profiles — both within the USA code graspable range. Wall-mount applications use Stainless Design's 316L stainless wall brackets, which position the rail 1.5" clear of the wall face, satisfying both IBC 1014.8 (knuckle clearance) and ADA Section 505.5 (1.5" minimum clearance from adjacent surfaces). All bracket types — wall-mount, post-top-mount and glass-clamp — are 316L stainless and finish-matched to the rail in satin brushed or mirror-polished.

316L stainless steel is the correct specification for all USA outdoor staircases, pool deck stairs, ADA ramps and coastal applications. In USA northern states — Michigan, Wisconsin, Minnesota, the Mountain West — where rock salt and calcium chloride de-icers are used on exterior stairs, 316L resists the chloride attack that causes 304-grade or painted mild steel rails to rust within 3–5 years. Stainless Design ships complete stainless steel handrail kits factory-direct: tube cut to your project length, wall brackets, post brackets, return ends, corner fittings and all fixings included — sized to your USA stair dimensions with no missing components on delivery.

Why Buy Stainless Steel Handrail from Stainless Design?

  • ✓ 42mm and 50mm profiles — IBC 1014.3.2 and ADA Section 505 graspable range
  • ✓ 34"–38" above nosing — IRC R311.7.8 and IBC 1014 height compliant
  • ✓ ADA 12" top and bottom stair extensions — public building ready
  • ✓ Wall bracket with 1.5" clearance — ADA Section 505.5 compliant
  • ✓ 316L for all USA outdoor, coastal and de-icing chemical environments
  • ✓ Complete kits — rail, brackets, return ends and fixings, factory-direct

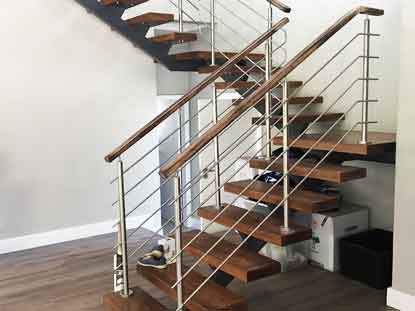

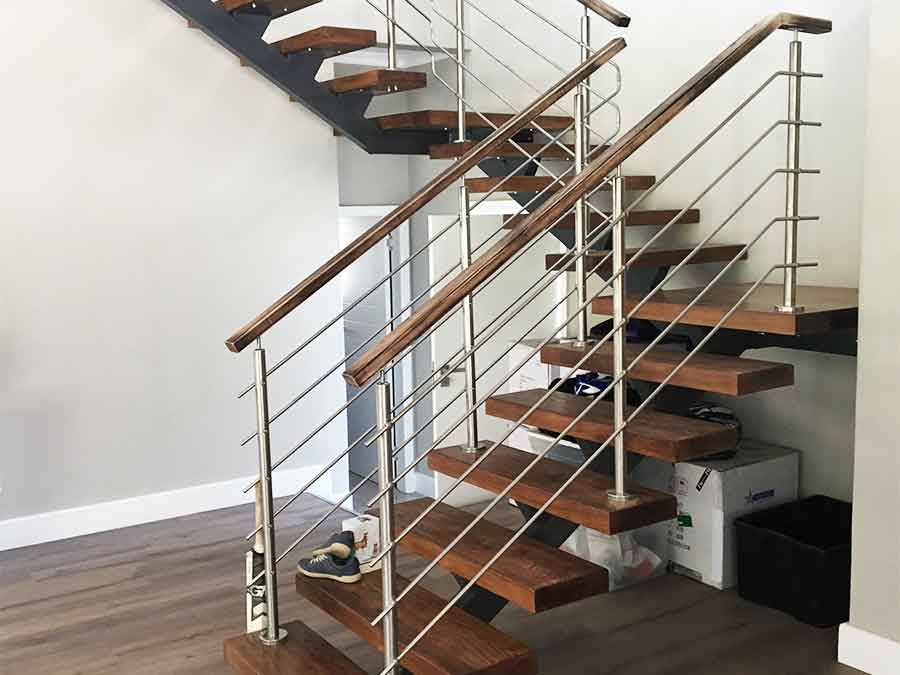

Stainless steel handrail USA 316L staircase installation completed

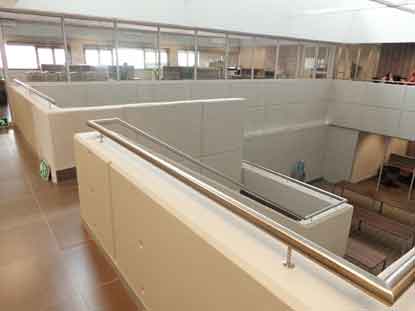

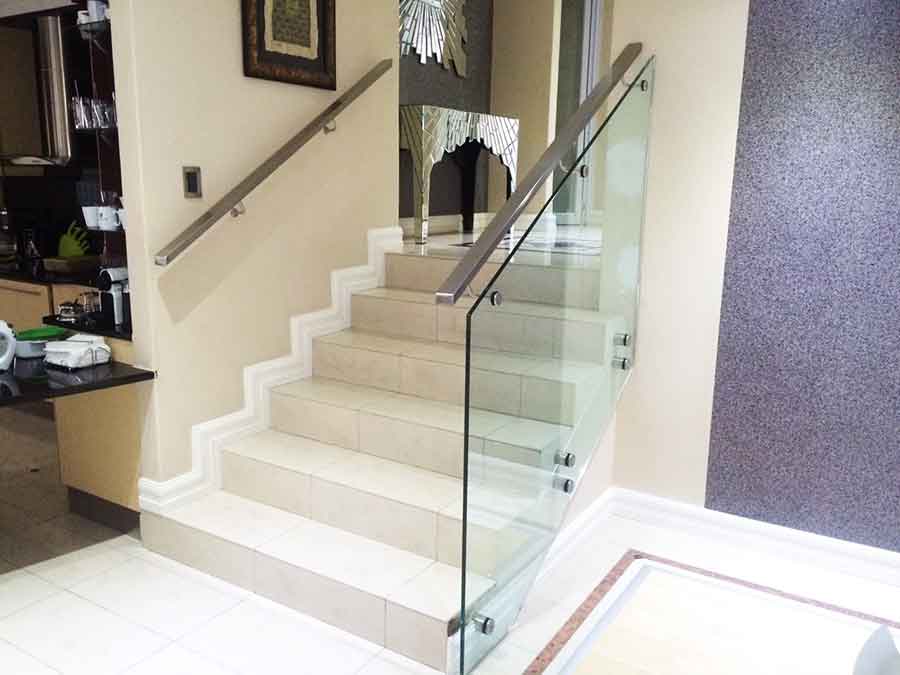

Wall mount 316L stainless handrail USA commercial project
Download Our Stainless Steel Handrail PDF Catalogue

Frequently Asked Questions — Stainless Steel Handrail USA

USA handrail height is measured vertically from the stair nosing (the leading edge of the tread) to the top of the handrail gripping surface. IBC Section 1014.2 and IRC Section R311.7.8 both require handrail height to be between 34 and 38 inches measured from the stair nosing line. This applies to all USA stairways in residential and commercial buildings. For ramps, IBC Section 1012 and ADA Section 505 require the top handrail to be between 34 and 38 inches above the ramp surface. Note that handrail height (34–38 inches from nosing) is different from guard height (36 inches residential, 42 inches commercial from floor or deck surface) — a stair may require both: a graspable handrail at 34–38 inches and a guard at 36–42 inches if the open side drops more than 30 inches.

IBC Section 1014.3.1 and IRC Section R311.7.8.3 require graspable handrail profiles. For round handrail tube, the outside diameter must be between 1.25 inches (32mm) and 2 inches (51mm). Stainless Design's standard USA handrail uses 48mm (1-7/8 inch) or 50mm (1-31/32 inch) round 316L tube — both within the IBC-compliant grip range and the most common sizes in USA commercial and residential stair applications. For non-circular profiles (square, oval or custom), IBC 1014.3.2 requires a perimeter between 4 inches and 6.25 inches with a maximum cross-section dimension of 2.25 inches. ADA Section 505.7 aligns with the same grip-range requirements and adds that the gripping surface must be continuous without obstructions or sharp edges.

Yes. ADA Section 505.10 and IBC Section 1014.6 require handrail extensions beyond the top and bottom risers of USA stairs. At the top landing, the handrail must extend horizontally 12 inches (one tread depth) beyond the top riser before terminating. At the bottom landing, the handrail must extend one full tread depth horizontally beyond the bottom riser, and then continue at the slope of the stair flight for a further vertical rise equal to one tread height before terminating at a returned end. These extensions allow a person to grasp the handrail before stepping onto the first tread and to maintain grip after stepping off the last tread. USA building departments enforce these extensions on commercial stairs. On residential stairs, ADA extensions are not required by IRC but are required whenever ADA applies (publicly accessible residential buildings, accessible dwelling units).

IBC Section 1014.8 and ADA Section 505.5 require a minimum 1.5-inch (38mm) clear space between the wall surface and the gripping surface of a wall-mounted handrail. This ensures a person can fully wrap their hand around the tube without their fingers contacting the wall. Stainless Design's wall-mount bracket sets are designed to provide 50mm (2-inch) clear space, which exceeds the minimum and allows installation on slightly uneven masonry walls without falling below the code minimum. Brackets are surface-mounted with stainless anchor bolts into concrete or stud-backed timber walls. Wall-mount brackets are spaced at maximum 48 inches center-to-center for IBC compliance, or at maximum 36 inches for ADA applications requiring enhanced stability.

USA building codes treat handrails and guardrails as separate elements with different functions and requirements. A handrail is a graspable element along a stairway or ramp, intended to provide balance and guidance while ascending or descending. IBC Section 1014 and IRC R311.7.8 govern handrails — they require a graspable profile (1.25–2-inch round tube), specific height from stair nosing (34–38 inches), and extensions at the top and bottom. A guardrail (also called a guard or balustrade) is a barrier preventing falls from elevated surfaces — decks, balconies, open-sided floors and the open side of stairs. IBC Section 1015 and IRC R312 govern guards — they require minimum 36-inch (residential) or 42-inch (commercial) height from the floor, structural loads per IBC Table 1607.8, and infill complying with the 4-inch sphere rule. On an open-sided stair, both are required simultaneously: a graspable handrail at 34–38 inches and a guard at 36–42 inches.
