Balustrade USA — Premium Stainless Steel & Glass Systems

Stainless Design supplies balustrade systems for every USA application — stainless steel, frameless glass and combined systems for decks, balconies, staircases and pool surrounds. Modular 316L components, factory-direct pricing, ships to all 50 states.

USA Balustrade Heights, Loads & Glass Standards

A USA balustrade is a complete guard system — posts, infill and top rail working together to meet both the height requirements of IBC Section 1015 or IRC Section R312 and the structural load requirements of IBC Table 1607.8. For residential USA decks and balconies, a 36" high balustrade (42" in California under CRC Section R312.1) must resist 200 lb applied over any 1-square-foot area at the top rail. For commercial mezzanines, elevated walkways and all multifamily buildings, the requirement steps up to 42" height and 500 lb load. Stainless Design supplies balustrade posts in standard 36" and 42" heights with anchor plate systems engineered for USA concrete slabs, timber deck framing and steel structure.

Glass thickness determines the structural performance of any USA glass balustrade. The minimum residential specification is 10mm toughened (tempered) safety glass certified to SGCC standard (ANSI Z97.1 / CPSC 16 CFR Part 1201). For USA commercial projects, elevated balconies more than 10 feet above grade and all pool surrounds, 12mm or 16mm toughened-laminated glass is the correct specification — the lamination holds the panel in the spigots even after a fracture event, preventing collapse and satisfying IBC Section 2407 safety glazing requirements. California's CBC requires laminated glass in all exterior glass guards regardless of height. Stainless Design supplies SGCC-certified panels in all thicknesses, pre-cut to your project dimensions.

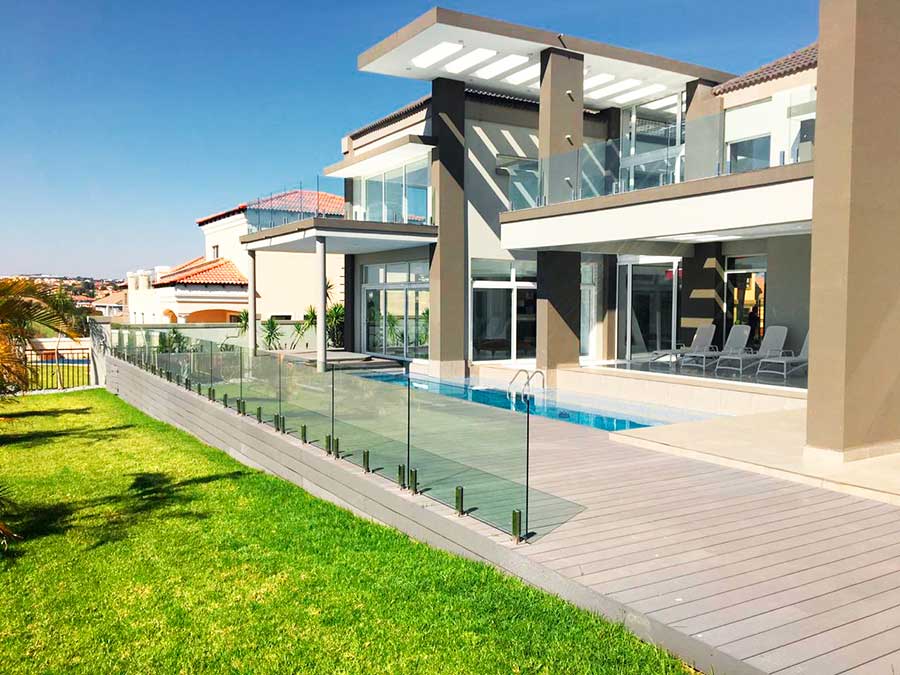

The two primary hardware systems for USA glass balustrade are spigot hardware and aluminium base channel. Bullet spigots (round) and square spigots are core-drilled or wet-set into the concrete slab — panels appear to float with minimal visible hardware, the preferred aesthetic for USA luxury residential and commercial projects. Aluminium base channel bolted to the slab edge or deck framing suits USA timber deck installations where continuous sealing at the glass base is required and slab penetration is not possible. Both systems use 316L stainless steel hardware throughout, and both meet IBC 1015 and IRC R312 in residential and commercial configurations.

Why Buy Balustrade from Stainless Design?

  • ✓ 36" (IRC R312) and 42" (IBC 1015 / CRC R312.1) post heights standard
  • ✓ SGCC-certified glass — 10mm residential, 12mm/16mm laminated commercial
  • ✓ Bullet spigot, square spigot and aluminium base channel hardware
  • ✓ Load-rated to IBC Table 1607.8 — 200 lb/LF residential, 500 lb/LF commercial
  • ✓ 316L marine grade — coastal USA, poolside and all outdoor applications
  • ✓ Factory-direct to all 50 US states — anchor drawings included

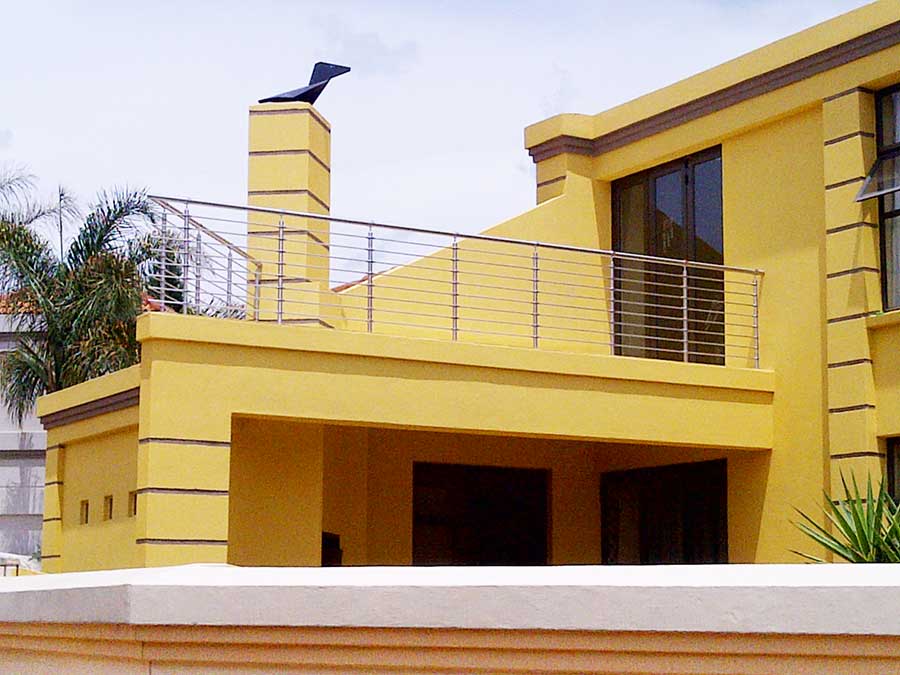

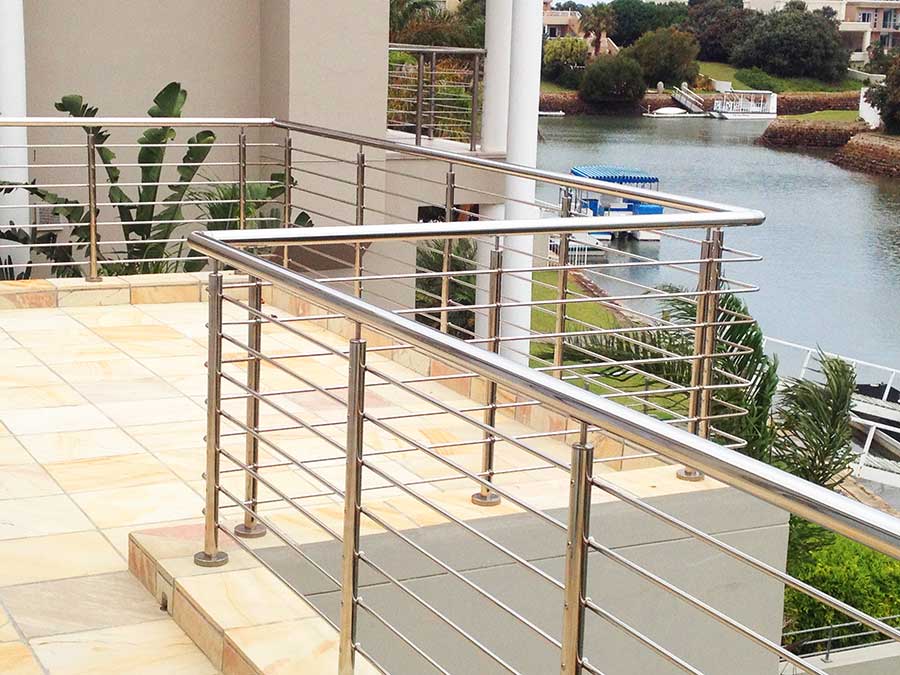

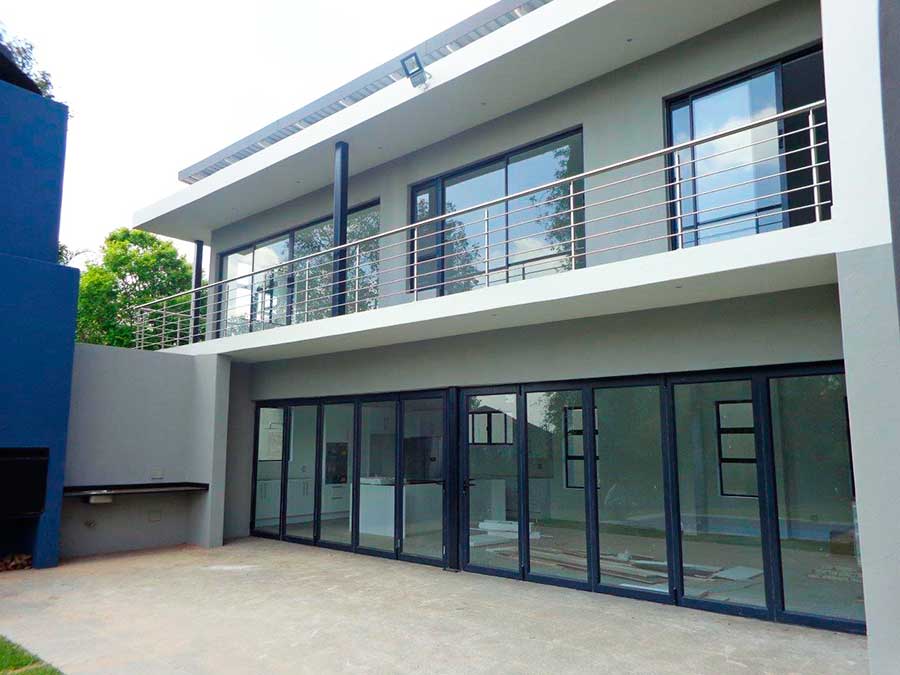

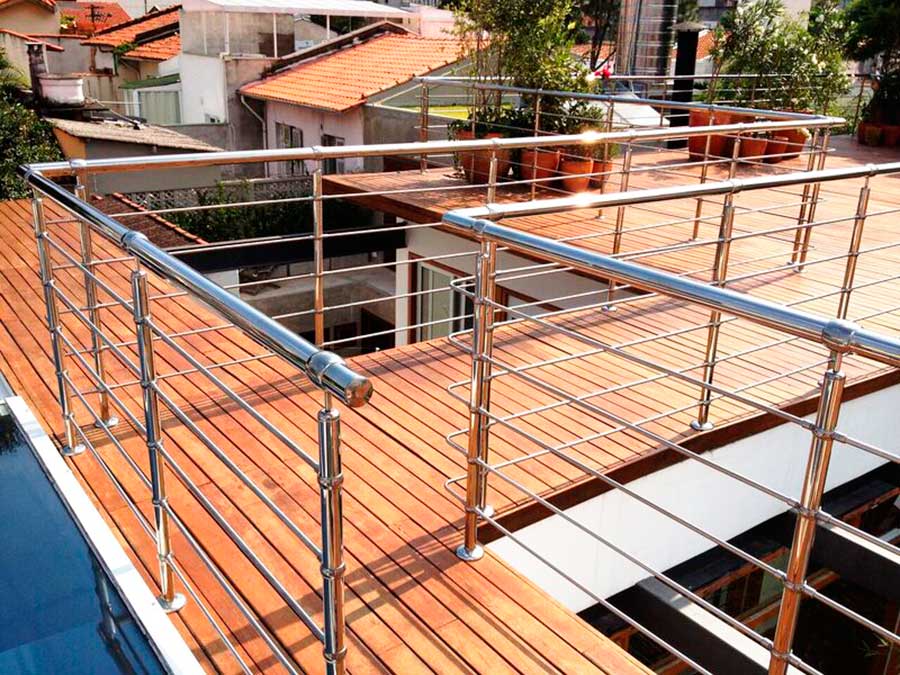

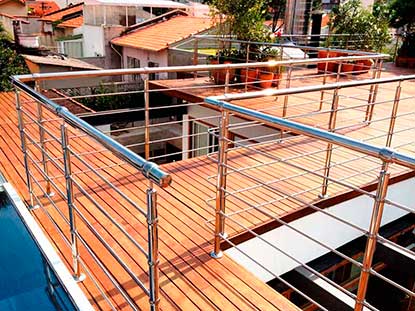

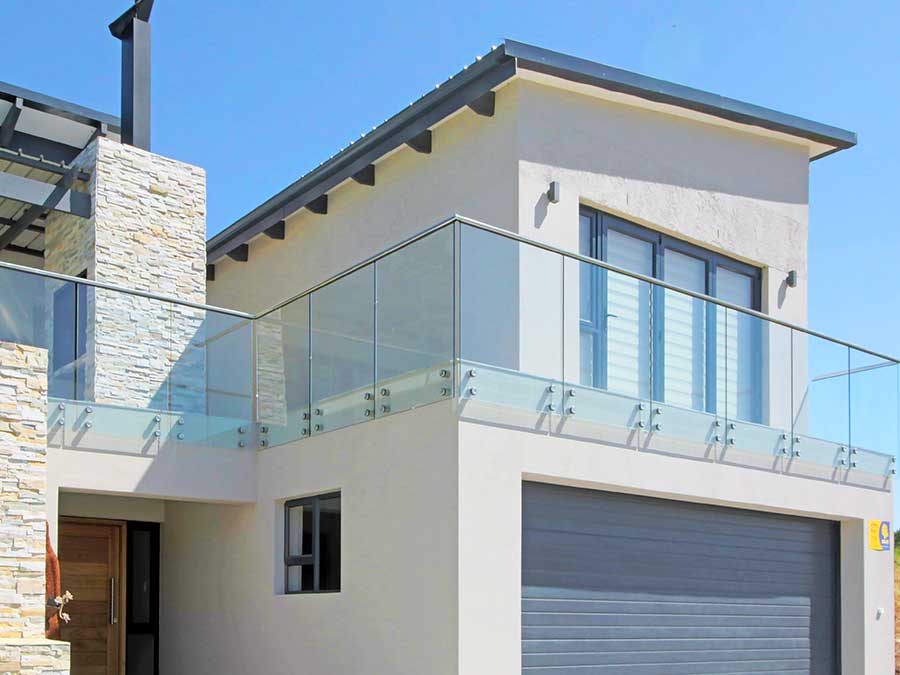

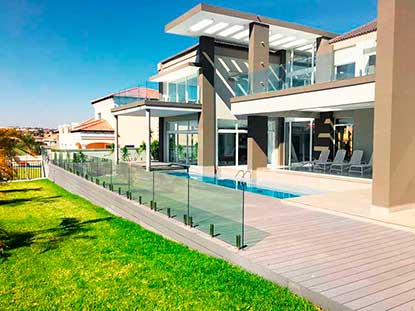

Balustrade USA stainless steel glass installation completed project

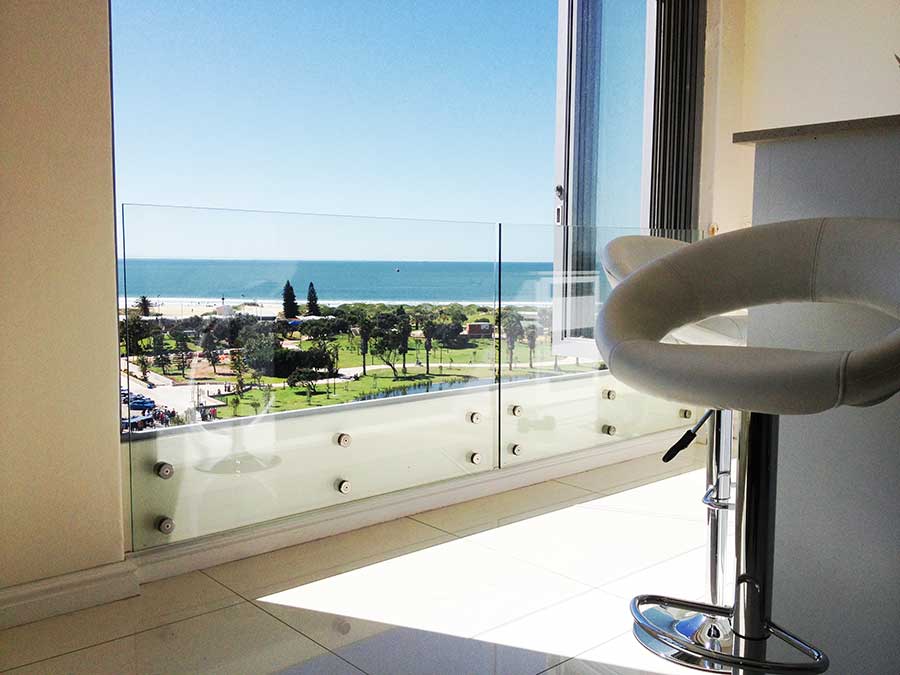

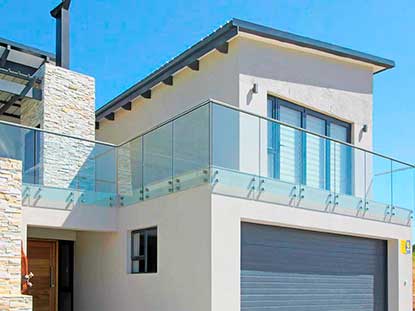

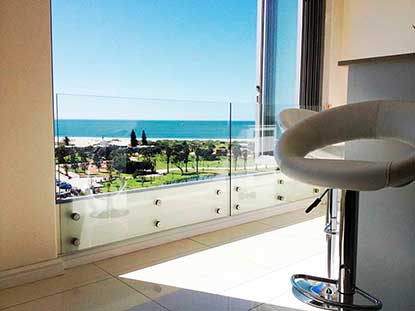

Glass balustrade USA residential design open views deck
Download Our Balustrade PDF Catalogue

Frequently Asked Questions — Balustrade USA

USA balustrade height requirements depend on the applicable code. For residential one- and two-family dwellings, IRC Section R312 requires a minimum 36 inches measured vertically from the deck or floor surface to the top of the balustrade wherever there is a drop of more than 30 inches. For commercial buildings — including multifamily, retail, hospitality and office — IBC Section 1015 requires a minimum 42 inches. California's CRC Section R312.1 requires 42 inches for residential decks more than 30 inches above grade, aligning with the commercial standard. Industrial settings follow OSHA 29 CFR 1910.29, which also requires 42-inch guards (±3 inches). Stainless Design supplies post systems for all four code environments with specification sheets for permit submission.

IBC Section 2407 requires all glass in guards (balustrades) to be safety glazing certified to ANSI Z97.1 and CPSC 16 CFR Part 1201 under SGCC certification. The minimum glass thickness for USA residential balustrades is 10mm fully tempered (toughened) glass. For commercial balustrades, elevated applications over 10 feet above grade, or where IBC 1607.8 commercial load requirements apply (500 lb concentrated), 12mm or 16mm tempered-and-laminated glass is required. California's CBC requires laminated glass for all exterior guards regardless of height. Stainless Design supplies SGCC-certified glass panels in 10mm, 12mm and 16mm options with certification documentation included for USA permit submissions.

IBC Section 1015.4 and IRC Section R312.1.3 both prohibit any opening in a USA balustrade infill that allows passage of a 4-inch diameter sphere. This rule is specifically designed to prevent a small child from getting their head stuck in a railing gap. For glass balustrades, this rule is automatically satisfied since glass panels have no openings. For cable balustrades, cables must be spaced at maximum 3 inches center-to-center. For baluster-style balustrades, the clear space between any two balusters must not exceed 4 inches. For stair balustrades, the 4-inch sphere rule applies to the triangular opening formed by the tread, riser and lowest rail — a stricter check that often requires a 4-3/8-inch or less opening.

A spigot balustrade uses individual post fittings — bullet spigots (50mm, 60mm or 76mm diameter) or square spigots — surface-mounted through the deck or floor structure. Each glass panel is clamped into its own spigot with neoprene gaskets and stainless cover plates. This system gives a floating, ultra-minimalist appearance since each panel appears to stand independently. A base channel balustrade uses a continuous aluminium U-channel (top-mount or side-mount) into which all glass panels slot with wedge packing and structural silicone. The channel provides more bottom support and is often required for USA commercial applications under IBC 1607.8's 500 lb/LF load requirement. Stainless Design supplies both systems in 316L stainless and powder-coated aluminium options.

Yes. California adopts the national IBC and IRC but amends them with the California Building Code (CBC) and California Residential Code (CRC). The key differences for balustrades are: CRC Section R312.1 increases the residential guard height from 36 to 42 inches for decks more than 30 inches above grade, matching the commercial standard. The CBC requires laminated safety glass for all exterior guards and balustrades regardless of height, where the national IBC only requires laminated glass above specific heights. California's seismic zones also increase post base anchor requirements — typically requiring longer anchor bolts and closer post spacing than non-seismic regions. Stainless Design's California-specific balustrade package includes 42-inch posts, 10mm laminated glass panels and seismic anchor details for permit submission.
