Stainless Steel Balcony Railing USA — 316L Marine Grade Systems

Stainless Design supplies stainless steel balcony railing systems in 316L marine-grade steel for USA high-rise, mid-rise and residential balconies. Glass panel and cable infill options. IBC/IRC compliant 42" guardrail height. No rust, no painting — ships to all 50 states.

USA Balcony Railing Code — IBC 1015 & Load Requirements

Every USA residential and commercial balcony requires a guard under IBC Section 1015 or IRC Section R312. IBC mandates 42" minimum height for all balconies and elevated walking surfaces in commercial and multifamily buildings. Residential balconies under IRC require 36" — 42" in California under CRC Section R312.1. The structural load requirement from IBC Table 1607.8 is 200 lb applied over any 1-square-foot area at the top of the guard for residential balconies and 500 lb for commercial balconies open to the public. Stainless Design's stainless steel balcony railing systems are pre-engineered to both dimensional and load standards, with structural calculations available for USA building permit submissions in any state.

For USA coastal balconies — Florida high-rises, California cliff-top homes, Gulf Coast condos, Outer Banks beach houses — 316L marine-grade stainless steel is the only specification that survives long-term salt air exposure without rust staining or structural degradation. The 2–3% molybdenum in 316L blocks chloride-ion attack at the grain boundaries that causes pitting in 304-grade. Stainless Design's 316L balcony railing posts (48mm and 50mm tube) and top rails are precision TIG-welded with welds ground to a No. 4 satin finish or mirror polish — eliminating the crevice corrosion sites that untreated welds create in USA coastal and poolside environments. For USA high-wind jurisdictions (Florida, Hawaii, Gulf Coast), engineering calculations for ASCE 7 wind load compliance are available on request.

Stainless Design supplies three stainless steel balcony railing configurations for USA projects: a glass infill system using SGCC-certified 10mm (residential) or 12mm (commercial) toughened glass in aluminium base channel; a frameless glass system using bullet spigots or square spigots surface-mounted to the balcony slab edge; and a 316L post-and-rail system with cable at 3" spacing or baluster infill for projects where glass is not specified. All three systems use the same 316L post base hardware — surface-mount plates for concrete balcony slabs and fascia-mount brackets for USA timber-framed deck-balcony construction.

Stainless Design Balcony Railing Advantages

  • ✓ 42" (IBC 1015) and 36"/42" (IRC/CRC R312) — structural calcs available
  • ✓ 316L TIG-welded and ground — no crevice corrosion in coastal USA
  • ✓ Load-rated to IBC Table 1607.8 — 200 lb residential, 500 lb commercial
  • ✓ Glass (channel + spigot), cable and baluster infill options
  • ✓ SGCC-certified glass — ANSI Z97.1 and CPSC 16 CFR Part 1201
  • ✓ ASCE 7 wind load calcs available for high-wind USA jurisdictions

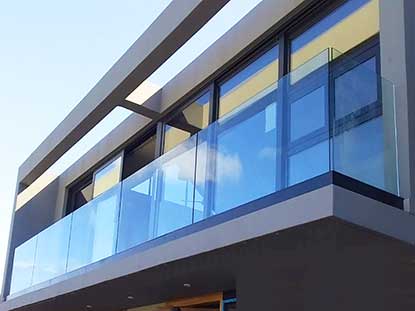

Stainless steel balcony railing USA 316L glass high-rise installed
Cable stainless steel balcony railing USA 316L outdoor residential
Download Our Balcony Railing PDF Catalogue

Frequently Asked Questions — Stainless Steel Balcony Railing USA

USA balcony railing height is governed by IBC Section 1015 for commercial and multifamily buildings, which requires a minimum 42 inches above the balcony floor. For residential one- and two-family dwellings, IRC Section R312 requires 36 inches for balconies and decks more than 30 inches above grade. California residential balconies under CRC Section R312.1 require 42 inches — matching the commercial standard. The height is always measured vertically from the balcony floor surface to the top of the railing, not along the post. On balconies adjacent to stairways, the taller 42-inch guard height may be required at the balcony edge nearest the stair. Stainless Design supplies balcony railing posts for all USA code environments with specification sheets identifying the applicable section numbers for each configuration — ready for permit submission.

316L is the mandatory grade for balcony railing in USA coastal environments. Balconies are typically elevated and fully exposed to prevailing coastal winds that carry salt-laden aerosols landward from the ocean — the chloride concentration at balcony height is often higher than at ground level. 304-grade stainless steel used in coastal USA balcony applications typically shows visible rust pitting and staining within 18–36 months. 316L's 2–3% molybdenum content resists chloride attack and maintains the passive oxide layer in these conditions. All Stainless Design coastal balcony railing products are 316L — including the tube, spigots, top rail, anchor bolts, washers, nuts, cover plates and cable fittings. Using any 304-grade component in a 316L system creates a galvanic weaker point where corrosion initiates first.

IBC Section 2407 requires all glass in USA balcony guards to be SGCC-certified safety glazing under ANSI Z97.1 and CPSC 16 CFR Part 1201. For residential balcony glass railing (IRC R312), 10mm fully tempered glass meets the minimum code requirement. For commercial balcony glass railing (IBC 1015), 12mm tempered-laminated glass is required at elevations more than 10 feet above grade — the laminated interlayer is critical because a fractured panel at height could fall to the street or occupied space below. California CBC requires laminated glass for all exterior balcony balustrades at any height. Stainless Design supplies SGCC-certified 10mm, 12mm and 16mm glass for USA balcony railing, and identifies the applicable glass specification based on the state, height and building type with every quotation.

USA concrete balcony slab anchoring for balcony railing uses one of three methods. Surface-mount post bases with epoxy adhesive anchors (Hilti HIT-RE 500 or equivalent, ICC-ESR listed) are the most common method — bolts are epoxied into core-drilled holes in the slab at the depth and spacing specified in the manufacturer's anchor schedule. Expansion sleeve anchors (Hilti HUS-H or equivalent, ICC-ESR listed) are used for lower-load residential applications where drilling depth is limited by slab thickness. Through-slab anchor bolts from the balcony soffit are used for renovation projects where the post position falls between existing rebar and cannot be epoxy-anchored from above. Stainless Design provides the anchor schedule for each method — bolt diameter, embedment depth, edge distance, spacing — calibrated to IBC Table 1607.8 load requirements for the project's residential or commercial classification.

Most USA jurisdictions require balcony railing to meet IBC Chapter 16 structural loads, which include both the occupancy live loads from IBC Table 1607.8 (200 lb/LF residential, 500 lb/LF commercial) and wind loads per ASCE 7. For balcony railing specifically, wind pressure on the balustrade infill (glass or solid panels) is often the governing load rather than the handrail live load — particularly on high-rise balconies in ASCE 7 exposure categories C and D (open terrain and coastal). Stainless Design's commercial balcony railing systems include structural data for the standard IBC occupancy loads. For high-rise applications, seismic zones, or hurricane exposure categories (Florida, Gulf Coast, Atlantic Coast), a project-specific structural calculation by a USA-licensed engineer may be required by the local building authority. Stainless Design can refer high-rise and coastal balcony projects to a licensed USA structural engineer familiar with our product range.
