Frameless Glass Balustrade USA — 316L Stainless Hardware

Stainless Design supplies frameless glass balustrade systems for USA residential and commercial projects — spigot and butterfly bracket hardware in 316L marine-grade stainless steel. Maximum views, minimal hardware, code-compliant. Ships to all 50 states.

Frameless Glass Balustrade Hardware — Spigot vs Channel

A USA frameless glass balustrade achieves its unobstructed look through the hardware that anchors the glass: spigots embedded in or surface-mounted on the structure, or aluminium base channel bolted to the slab edge or deck framing. Stainless Design supplies both systems in 316L marine-grade stainless steel. The bullet spigot is core-drilled or wet-set into concrete — available in 50mm, 60mm and 76mm core sizes to suit your structural specification. Square spigots are available for surface-mount applications where core-drilling the slab is not possible. Both spigot types clamp the glass panel with stainless steel cover plates and neoprene gaskets that dampen vibration and create a weather-sealed joint at each glass panel.

USA glass specification for frameless glass balustrade is governed by IBC Section 2407 (safety glazing in guards) and SGCC certification (ANSI Z97.1 / CPSC 16 CFR Part 1201). The residential minimum is 10mm toughened (tempered) glass. For USA commercial projects and elevated locations more than 10 feet above grade, 12mm toughened-laminated glass is required — the laminated interlayer holds the panel in the spigots after a fracture event, preventing collapse. California's CBC requires laminated glass in all exterior glass guards at any height. For USA pool surround applications, SGCC-certified 12mm or 16mm laminated glass is the universal specification accepted by all USA building departments. All Stainless Design glass panels carry SGCC certification and are supplied with the certification documentation needed for USA permit submissions.

HOA design guidelines across USA luxury residential communities consistently specify frameless glass balustrade to preserve sightlines and property values. Stainless Design's 50mm and 60mm standoff spigot hardware and polished 316L top rail in satin-brushed No. 4 finish are accepted by USA homeowners associations in coastal Florida, California and the Pacific Northwest. For northern USA states with hard winters, aluminium base channel is particularly effective — the channel seals the glass base against snow and ice infiltration and the 316L hardware resists de-icing salts that would corrode 304-grade within a few seasons.

Why Buy Frameless Glass Balustrade from Stainless Design?

  • ✓ Bullet spigot (50/60/76mm), square spigot and aluminium base channel
  • ✓ SGCC-certified glass — 10mm residential, 12mm/16mm laminated commercial
  • ✓ IBC Section 2407 safety glazing compliant — permit documentation included
  • ✓ 316L marine grade throughout — coastal FL, CA, Gulf Coast rated
  • ✓ HOA-approved: satin brushed No. 4 and mirror-polished finish options
  • ✓ Ships factory-direct — all hardware and glass to your USA job site

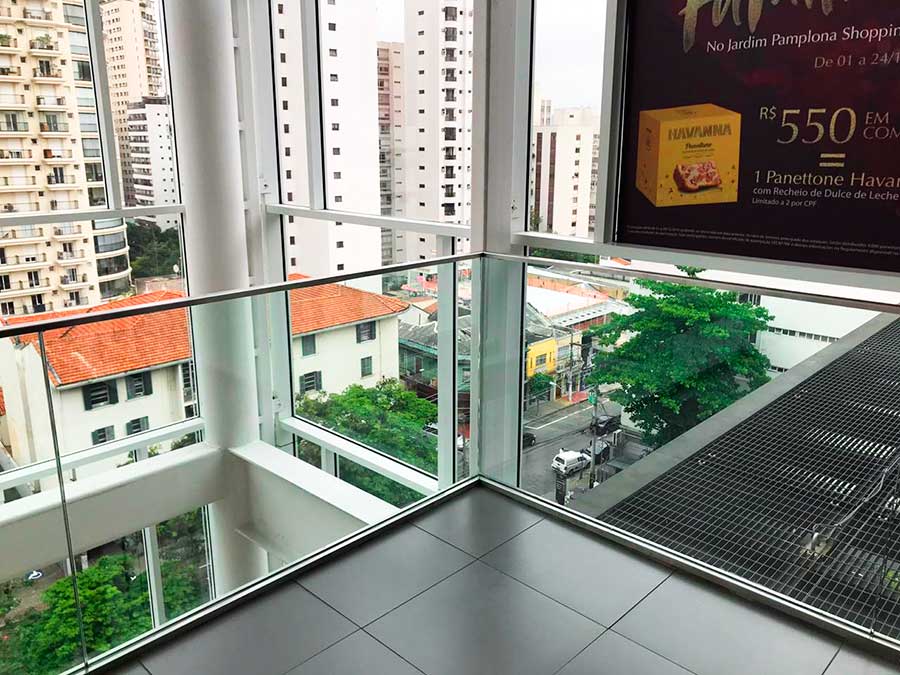

Frameless glass balustrade USA spigot installation completed project
Butterfly bracket frameless glass balustrade USA deck outdoor
Download Our Frameless Glass Balustrade PDF Catalogue

Frequently Asked Questions — Frameless Glass Balustrade USA

USA glass balustrade glass must be SGCC-certified safety glazing per ANSI Z97.1 and CPSC 16 CFR Part 1201, as required by IBC Section 2407. For residential frameless glass balustrades (IRC R312, 36-inch height, 200 lb/LF load), 10mm fully tempered glass is the minimum standard specification. For commercial frameless glass balustrades (IBC 1015, 42-inch height, 500 lb/LF load), 12mm tempered-laminated glass is required — the laminated interlayer is critical because at commercial loads the glass must retain its position in the spigots even if fractured. For elevated applications over 10 feet above grade, or for California CBC projects, 12mm or 16mm tempered-laminated is required regardless of residential or commercial classification. Stainless Design supplies 10mm, 12mm and 16mm options with SGCC certification documentation included for each USA order.

Both are point-fixing hardware used to surface-mount glass panels in a frameless glass balustrade system, but they differ in form and visual character. A bullet spigot is a cylindrical (round) post fitting available in 50mm, 60mm and 76mm outside diameters. The round profile gives a clean, modern, almost industrial appearance — it is the most common specification in USA residential deck and pool applications. A square spigot uses a rectangular post cross-section, typically 50×50mm or 60×60mm. Square spigots suit contemporary architectural styles with strong rectilinear geometry — flat-roof homes, steel-frame commercial buildings and minimalist interiors. Both types use the same mechanical glass clamping system: neoprene gaskets and a stainless steel cover plate tightened with concealed set screws. Both meet IBC Table 1607.8 load requirements when anchored per the specification. Stainless Design supplies both types in 316L stainless in multiple size options.

Yes. California's CBC (California Building Code) requires laminated safety glass for all exterior guards and balustrades regardless of height, which is stricter than the national IBC. While the IBC requires laminated glass only above specific heights and in specific hazard conditions, the CBC blanket-requires lamination for all outdoor balustrades in California — this includes residential deck balustrades that in other USA states would only require 10mm tempered. The practical implication for California frameless glass balustrade projects is that 10mm or 12mm tempered-laminated glass is required as the minimum specification. Stainless Design's California package includes laminated glass panels with SGCC certification and CBC code compliance documentation, avoiding surprises at the building department inspection stage.

Yes. Frameless glass balustrade is one of the most popular choices for USA pool surrounds because it provides an unobstructed view of the pool area while meeting both safety railing requirements and pool barrier code requirements. USA pool barriers must comply with IBC Section 3109 and local ordinances (many states adopt ANSI/APSP-7 or local pool codes), which typically require a minimum 48-inch barrier height for pool enclosures — higher than the standard deck balustrade height. Stainless Design's pool surround balustrade systems can be specified to 48-inch or 60-inch heights for pool barrier compliance. The 316L stainless spigots and glass panels resist pool chemical environments — chlorine, pH adjustment acids, cyanuric acid — that aggressively corrode 304-grade stainless and aluminium hardware within 12–24 months of installation.

Most USA HOAs in master-planned and resort communities approve frameless glass balustrade, particularly in communities where ocean, lake or mountain views are a selling point. The frameless system is visually transparent and does not obstruct views across properties. For HOA approval, you will typically need to submit the glass specification (SGCC-certified, 10mm or 12mm tempered), hardware finish (No. 4 brushed 316L stainless is the most universally accepted architectural finish in USA HOA design guidelines) and a drawing or photo showing the installation. Stainless Design can provide a finish sample pack and precedent photography to support your HOA design review submission. In some high-end USA communities, frameless glass balustrade is specifically called out in the HOA design guidelines as an approved railing option.
